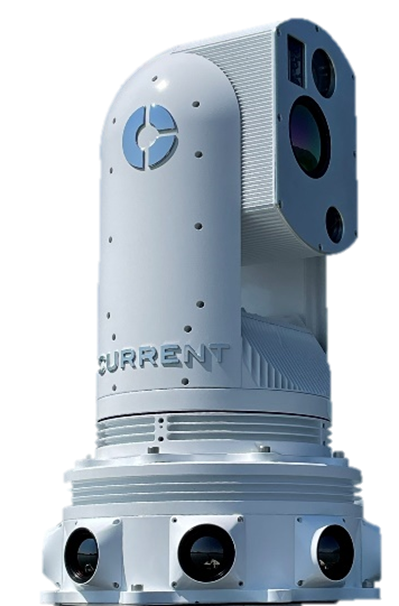

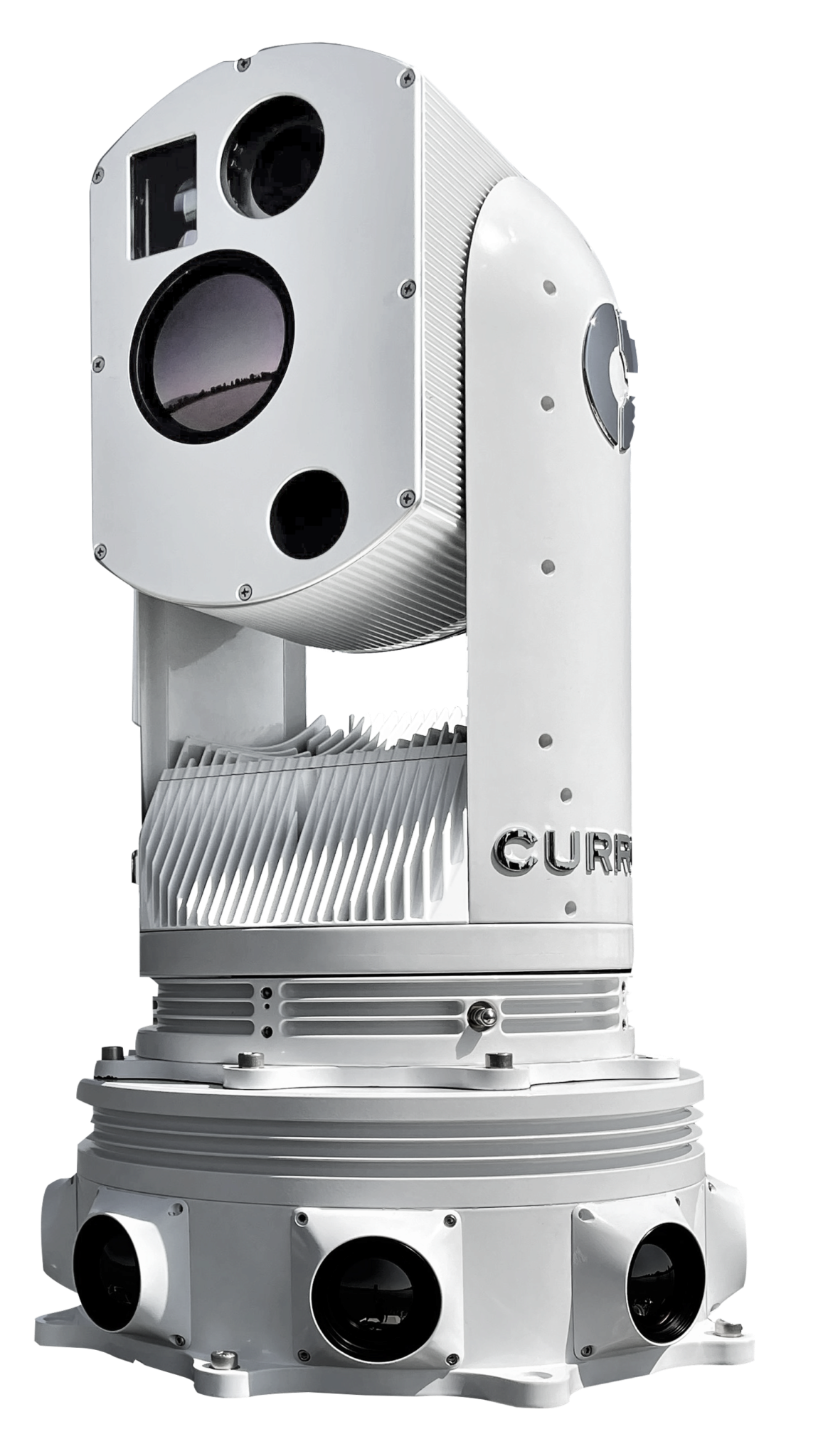

Panoramic HD IR

The Panoramic HD IR is Current’s newest payload platform: it combines live panoramic surveillance with long-range intelligence in the ultimate electro-optical & infrared payload.

The panoramic camera array provides live panoramic high-definition infrared views of the situation around the vessel, while the PTZ unit provides a long-range investigation payload in a multisensory configuration.

The system can detect potential threats and alert the crew or AI based controller to investigate and evaluate risk in order to take early action to protect the vessel.

The long-range PTZ unit allows investigation and confirmation of the threat, while the panoramic camera maintains situational awareness at all times.

The panoramic HD IR can be controlled from the bridge of a ship or through an IP network in a security room or remote location.

Specifications

Thermal Camera
Sensor Type Uncooled Long Wave Infrared (LWIR), 8-12µm
Resolution 8000x700 pixels, 30fps
Field of View 360° or 225° horizontal x 36° vertical
Payload Specifications
Weight 13kg (in addition to PTZ unit)
Dimensions 400mm D x 148mm H (in addition to PTZ unit)
System Interface
Video Streaming RTSP H.264
Control Over IP network
Radar / AIS ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network
Features
Environmental IP67
Operational Temperature -20°C to +50°C
Control Options Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick
Third Party Interface Protocol for integration into navigation system / video management system / C2
Video Recording Network recording of two video streams on VMS or dedicated DVR
Power Requirements
Voltage 18-36VDC (Panoramic array) 100-240VAC (CPU module)
