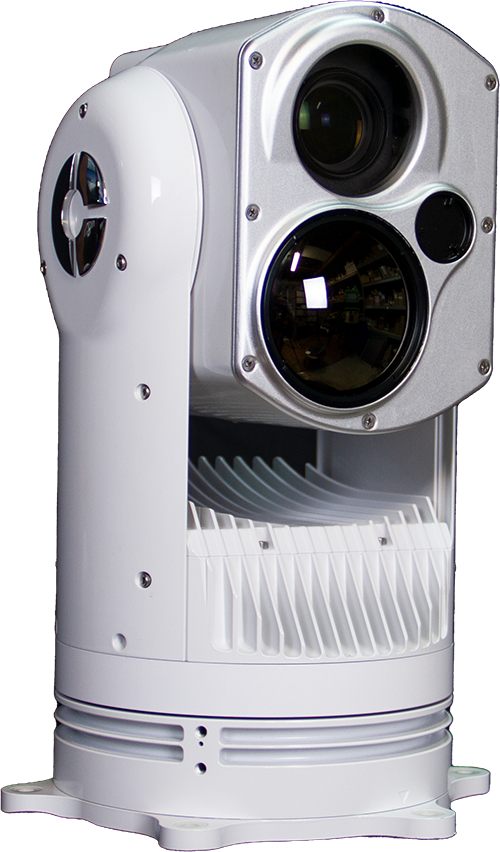

The top of the line in the NN2000 series, it features both a 5x optical zoom on the thermal camera and the ability to include video-tracking. Its IR optical zoom increases its capabilities as a system for passive observation and intelligence.
| Thermal Camera | |
|---|---|
| Sensor Type | Uncooled Long Wave Infrared (LWIR), 8-12µm |
| Resolution | 640x480 pixels, 30fps |
| Field of View | 43° to 8.2° |
| Optical Zoom | 5x |
| Detection Range | NATO Target >5km |
| Day Camera | |
| Resolution | 1920x1080 pixels, 30fps |
| Field of View | 63.7° to 2.3° |
| Optical Zoom | 30x continuous zoom |
| Low Light Camera | 0.0015 lux |
| Payload Specifications | |
| Stabilization | Gyro and video stabilization |
| Pan Range | Continuous 360° AZ rotation |
| Tilt Range | +/-90° elevation movement, including stow position |
| Weight | ≤12 kg [26lbs] |

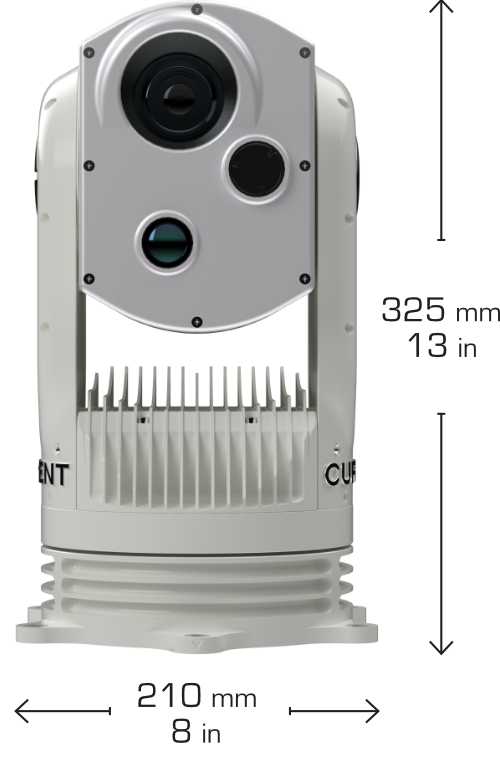

| Dimensions | 325mm H x 210mm W [13in H x 8in W] |
| System Interface | |
| Video Streaming | RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams |
| Control | Over IP network |
| Radar / AIS | ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network |
| Features | |
| Environmental | IP67 |
| Operational Temperature | -20°C to +50°C |
| Video Tracking | Optional |
| Control Options | Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick |
| Third Party Interface | Protocol for integration into navigation system / video management system / C2 |
| Video Recording | Network recording of two video streams on VMS or dedicated NVR |
| Power Requirements | |
| Voltage | 24 to 36VDC |
| Max. Consumption | 210W |
